Garantita dalla guarnizione fonoassorbente ed antivibrante. Disponibile in versione antistatica, conduttiva o equipotenziale su richiesta.

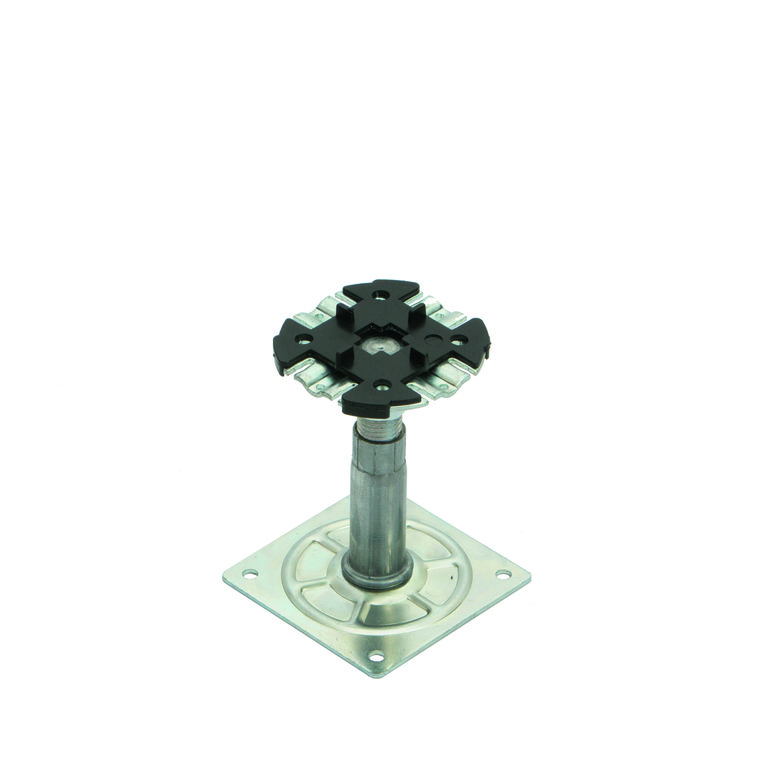

La composizione con disco base da 2,5 mm, disco testa da 3 mm, vite M20 e tubo Ø 25x2 mm stretto e filettato M20 qualificano la struttura come estremamente robusta, adatta sopportare senza problemi carichi elevatissimi.
Il tubo filettato associato ad una guarnizione rotante permette una regolazione micrometrica dell’altezza.
Il disco base 100x100x2,5 mm e l’assenza di gioco dovuta all’accoppiamento tra tirante M20 e tubo stretto e filettato conferiscono alla colonna stabilità elevatissima, anche per grandi sopraelevazioni.
H. NOM | H. REGOLAZIONE | H. DADO | SOVR. MIN. |
COMPOSIZIONE | PESO | IMBALLI | ||||||
mm | min (mm) |
max (mm) |
mm | mm | base | testa | base | testa | dim. | n° | dim. | n° |
(gr) | (gr) | (cm) | pezzi | (cm) | pezzi | |||||||
100 | 85 | 114 | 9 | 20 | BIM060 | TJM072 | 266.9 | 286.8 | 39x29x26 | 90 | 39x29x26 | 120 |
120 | 105 | 134 | 9 | 20 | BIM080 | TJM072 | 287.5 | 286.8 | 39x29x26 | 80 | 39x29x26 | 120 |
140 | 125 | 154 | 9 | 20 | BIM100 | TJM072 | 308.1 | 286.8 | 59x29x30 | 110 | 39x29x26 | 120 |
170 | 135 | 208 | 9 | 26 | BIM110 | TJM122 | 318.4 | 389.3 | 59x29x30 | 110 | 39x29x26 | 80 |
210 | 185 | 248 | 9 | 26 | BIM150 | TJM122 | 359.6 | 389.3 | 59x29x30 | 90 | 39x29x26 | 80 |
260 | 225 | 298 | 9 | 26 | BIM200 | TJM122 | 411.1 | 389.3 | 59x29x30 | 90 | 39x29x26 | 80 |
300 | 265 | 338 | 9 | 26 | BIM240 | TJM122 | 452.3 | 389.3 | 59x29x30 | 70 | 39x29x26 | 80 |
350 | 315 | 388 | 9 | 26 | BIM290 | TJM122 | 400.8 | 389.3 | 79,5x59,5x52 | 350 | 39x29x26 | 80 |
400 | 365 | 438 | 9 | 26 | BIM340 | TJM122 | 555.3 | 389.3 | 79,5x59,5x52 | 350 | 39x29x26 | 80 |
450 | 415 | 488 | 9 | 26 | BIM390 | TJM122 | 606.8 | 389.3 | 79,5x59,5x52 | 270 | 39x29x26 | 80 |
500 | 465 | 538 | 9 | 26 | BIM440 | TJM122 | 658.3 | 389.3 | 79,5x59,5x52 | 270 | 39x29x26 | 80 |
550 | 515 | 588 | 9 | 26 | BIM490 | TJM122 | 709.8 | 389.3 | 79,5x59,5x52 | 250 | 39x29x26 | 80 |
600 | 565 | 638 | 9 | 26 | BIM540 | TJM122 | 761.3 | 389.3 | 120x80x67 | 550 | 39x29x26 | 80 |
650 | 615 | 688 | 9 | 26 | BIM590 | TJM122 | 812.8 | 389.3 | 120x80x67 | 550 | 39x29x26 | 80 |
700 | 665 | 738 | 9 | 26 | BIM640 | TJM122 | 864.3 | 389.3 | 120x80x67 | 500 | 39x29x26 | 80 |
750 | 715 | 788 | 9 | 26 | BIM690 | TJM122 | 915.8 | 389.3 | 120x80x67 | 400 | 39x29x26 | 80 |
800 | 765 | 838 | 9 | 26 | BIM740 | TJM122 | 967.3 | 389.3 | 120x80x67 | 400 | 39x29x26 | 80 |
850 | 815 | 888 | 9 | 26 | BIM790 | TJM122 | 1018.8 | 389.3 | 120x80x67 | 350 | 39x29x26 | 80 |
900 | 865 | 938 | 9 | 26 | BIM840 | TJM122 | 1070.3 | 389.3 | 120x80x67 | 300 | 39x29x26 | 80 |
950 | 915 | 988 | 9 | 26 | BIM890 | TJM122 | 1121.8 | 389.3 | 120x80x67 | 250 | 39x29x26 | 80 |
1000 | 965 | 1038 | 9 | 26 | BIM940 | TJM122 | 1173.3 | 389.3 | 120x80x67 | 250 | 39x29x26 | 80 |
ARTICOLO | CODICE | PESO (gr.) |
IMBALLI | |||||||||
dim. (cm) |
n° pezzi |
|||||||||||
Guarnizione rotante antistatica per teste | G32 | 10 | 59x29x30 | 700 | ||||||||
Guarnizione rotante conduttiva per teste | G36 | 10 | 59x29x30 | 700 | ||||||||
Guarnizione rotante equipotenziale per teste | G38 | 12 | 59x29x30 | 700 | ||||||||
* le guarnizione sono imballate a parte |
