"Q" type Structure

"Q" type Structure


silent

Silent

Guaranteed by the sound-absorbing and anti-vibration gasket. Available in antistatic or conductive version on request.

robustness

Robustness

Thanks to the 2,5 mm thick ribbed disc, welded to a Ø18x2mm tube.

adjustability

Adjustability

The crown nut allows micrometric height adjustment, and the coupling between the grooves on it and the indentation realized on the tube prevent unscrewing.

adaptability

Adaptability

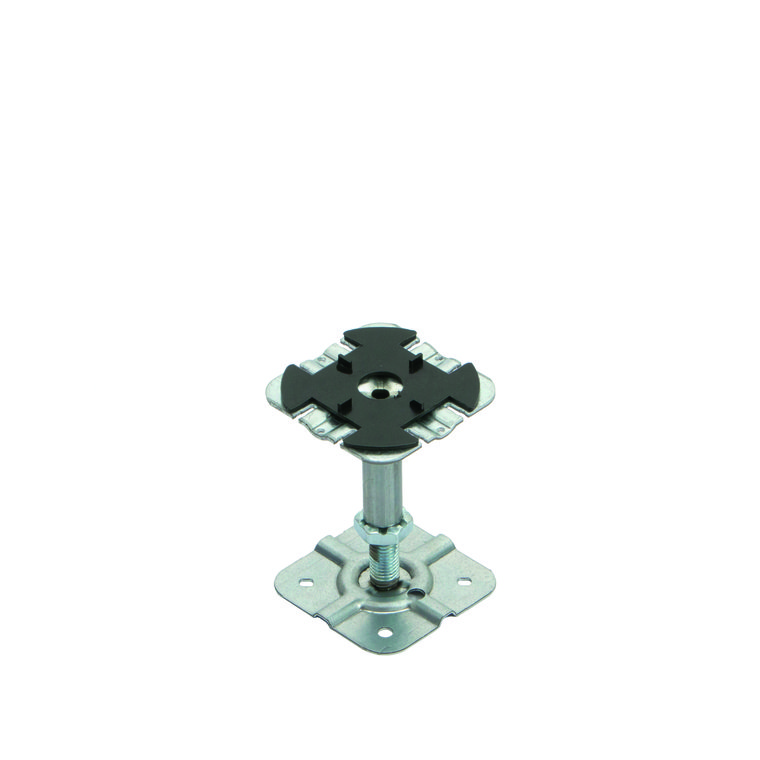

The ribbed 1.5 mm thick disc welded to the M14 threaded rod allows, thanks to the central bell mouth, to easily adapt to uneven surfaces. Four holes allow the mechanical anchoring of the pedestal to the ground or, as an alternative, its specially designed shape allows perfect adherence with minimal use of glue.

H NOM.  ADJUSTAMENT THICKNESS NUT MIN OVERLAP COMPOSITION WEHIGT GR. PACKAGE
mm mm mm mm mm base/head + cap base (gr) head (gr) dim. (cm) n° units per box dim. (cm) n° units per box
90 77 108 9 24 BQ070 TQ060G1 150 161 39x29x26 130 39x29x26 130
100 84 118 9 24 BQ070 TQ070G1 150 169 39x29x26 130 39x29x26 120
120 100 140 9 27 BQ080 TQ085G1 161 181 39x29x26 120 39x29x26 120
135 115 155 9 27 BQ080 TQ100G1 161 190 39x29x26 120 39x29x26 100
150 130 170 9 27 BQ080 TQ115G1 161 196 39x29x26 120 39x29x26 80
180 160 200 9 27 BQ080 TQ145G1 161 205 39x29x26 120 59x29x30 120
220 190 245 9 32 BQ100 TQ175G1 192 252 39x29x26 100 59x29x30 120
260 230 285 9 32 BQ100 TQ215G1 192 284 39x29x26 100 59x29x30 120
300 270 325 9 32 BQ100 TQ255G1 192 315 39x29x26 100 59x29x30 120
ITEM CODE WEHIGT (gr) PACKAGE
n° units per box dim. gasket (cm)
antistatic cap for heads G1 9 1000 59x29x30
conductive cap for heads G2 9 1000 59x29x30
